PEPPERL+FUCHS

Inductive Sensors

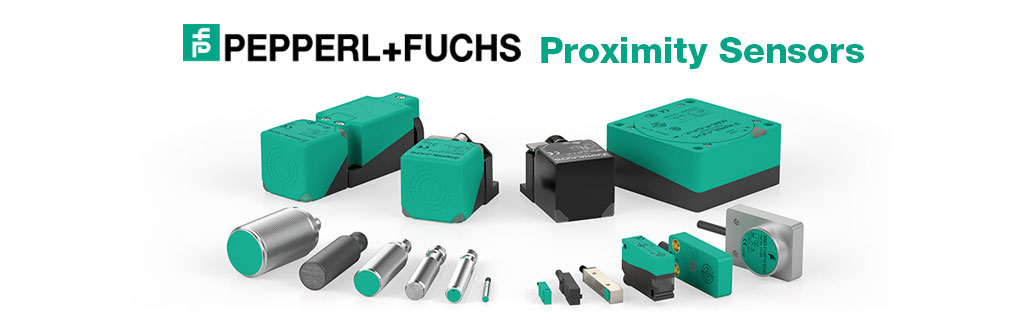

Advanced Motion & Controls offers Pepperl+Fuchs’ innovative, high quality proximity switches and inductive proximity sensors.

Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. As a pioneer and market leader, Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets. Read more …

Standard Inductive Sensor Product features:

Smooth or threaded stainless housings
Polarity reversal and short-circuit protected
LED status indication
Connection styles include M8, M12 or terminal connection models
Models with PVC, PUR or silicon cable
Outputs in 2-, 3-, 4-wire DC, AC, NAMUR, and AS-Interface versions

Application Specific Inductive Sensor features:

Analog output models with 4-20 mA output signal
Integrated speed monitor with up to 100 Hz operation
Pressure resistant cylinder sensors for up to 500 bar
Sensors approved for gas and dust Ex zones
Models with stainless steel sensing face
Protective class of up to IP68/ IP69k (submersible/ high pressure water jet resistant)
Weld resistant designs with PTFE-coated surface
Reduction factor of 1, all metals sensed at same distance
Exclusive ferrous and non-ferrous detection models
Safety function sensors
Extended temperature range: -40 °C up to +250 °C

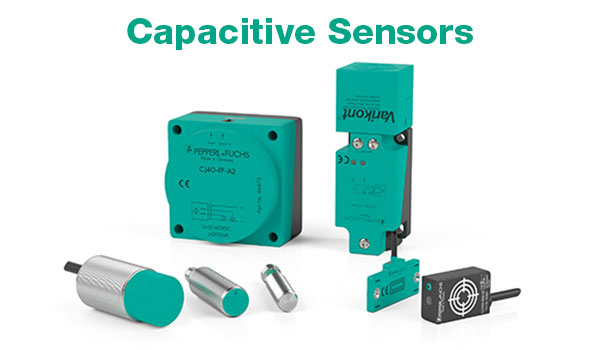

Like inductive sensors, capacitive sensors function without physical contact with the target material. Capacitive sensors allow for the detection of both, conductive and non-conductive materials, but are most commonly used for sensing materials such as plastics, liquids, powders and granular materials.

In applications utilizing capacitive technology the sensitivity of capacitive proximity switches is dependent on the material characteristics of the target object. This material characteristic of the metal, plastic or liquid object will influence the sensing range and therefore the output detection point of the capacitive sensor. To allow for this variation in material characteristics Pepperl+Fuchs offers many models with adjustable sensitivity to allow for more flexibility in applying these sensors to your application.

These capacitive sensor products offer an alternative technology for use in applications where the use of inductive sensors may not be possible.

Read more …

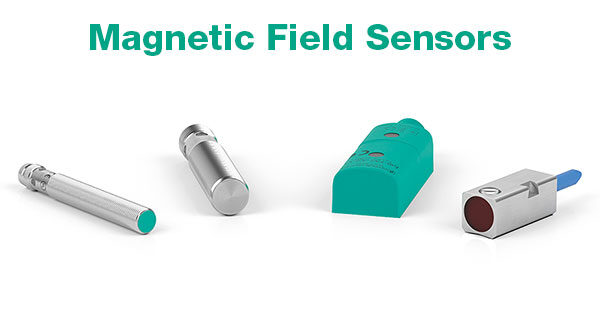

PEPPERL+FUCHS magnetic field sensor selection consists of the M12 housing style for traditional magnetic detection applications. Also offered is a non-contact, piston detection sensor for use with steel hydraulic cylinders. These magnetic sensors offer reliable piston magnet detection and are easily mounted, without the need for mounting slots or holes in the cylinder.

Read more …
