Universal Robots

Flexible Industrial Collaborative Robot Arms

Flexible Collaborative Robots

ur_30_banner

Universal Robots has reinvented industrial robotics with lightweight and flexible robot arms. With established service and support in more than 40 countries worldwide, the Danish-designed robots automate tasks across the entire industrial sector.

Return on investment is rapid, making an investment in UR robots affordable.



ISO compliant for collaborative robots
3,5, 12.5, 16, 20 and 30 kg payloads available
Simple to use and works right alongside employees
Precision handling and performance
Light-weight and flexible robot arms
Programming through intuitive touch screen
Faster, easier to implement and more affordable

The UR30 can lift heavy payloads while maintaining a compact footprint in a collaborative setting. With a 30 kg lifting capacity and a 1300 mm reach this robot can tend larger machines, palletize heavy products, and effectively support high torque screw driving.



the UR30 offers extraordinary lift in a compact footprint with superior motion control ensuring the perfect placement of large payloads. With the ability to handle higher torque, the UR30 opens the door for precise screw driving and the 30 kg payload brings productivity to everything from machine tending with multiple grippers to palletizing heavy parts.



Learn more about UR30

UR30: Heavy Payload

UR30: Performance in a Compact Size



  • 30 KG payload
  • 1300 mm reach
  • 12 inch touchscreen with PolyScope graphical user interface



MORE ON UR30

Download UR30 Datasheet

Download the UR family comparison

UR5 Ways Cobot Transform
  • Cobots can help solve many of your high-stakes operating issues.



  • Automate the least appealing work & get the best from your employees.



  • Improve quality while reducing costs.



  • Pivot production quickly to meet demand.



  • Upskill your employees and enjoy lower automation costs
AMC Ur Products
  • Do I need to automate?



  • What are my options?



  • Can I afford to automate?



  • What processes can I automate?



  • Are cobots right for me?



Cobots in industries

Universal Robots collaborative robot arms are used to boost performance and add value in countless industries every day.
How can you use a collaborative robot to automate your industry?



Universal Robots collaborative

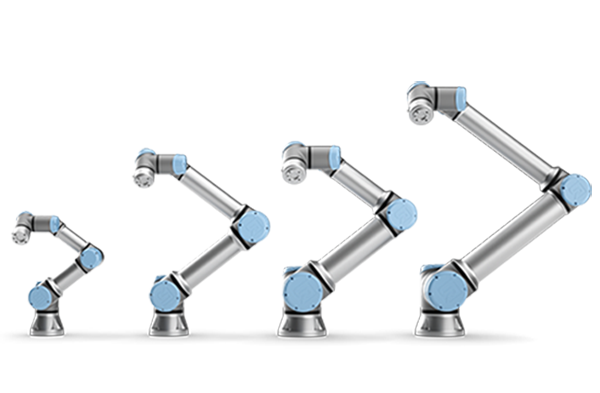

Platinum Canadian Distributor Products and Features:

3e

UR3e Robot



  • Payload: 3 kg / 6.6 lbs
  • Reach: 500 mm / 19.7 in
  • Weight: 11.2 kg / 24.7 lbs
  • Footprint: Ø 128 mm





UR3e

5e

UR5e Robot



  • Payload: 5 kg / 11 lbs
  • Reach: 850 mm / 33.5 in
  • Weight: 20.6 kg / 45.4 lbs
  • Footprint: Ø 149 mm





UR5e

10e

UR10e Robot



  • Payload: 12.5 kg / 27.55 lbs
  • Reach: 1300 mm / 51.2 in
  • Weight: 33.5 kg / 73.9 lbs
  • Footprint: Ø 190 mm



UR10e

16e

UR16e Robot





  • Payload: 16 kg / 35.3 lbs
  • Reach: 900 mm / 35.4 in
  • Weight: 33.1 kg / 73 lbs
  • Footprint: Ø 190 mm







UR16e

UR20

UR20e Robot





  • Payload: 20 kg / 44.1 lbs
  • Reach: 1750 mm / 68.9 in
  • Weight: 64 kg / 141.1 lbs
  • Footprint: Ø 245 mm



UR20e Robot

ur30_200x200

UR30e Robot





  • Payload: 30 kg / 66.13 lbs
  • Reach: 1300 mm / 51.2 in
  • Weight: 63.5 kg / 139.9 lbs
  • Footprint: Ø 245 mm



UR30e Robot

Controller

Controller and Pendant



  • Programming: Graphical user interface on 12 inch touchscreen
  • Communication: TCP/IP – Ethernet sockets, Modbus TCP





Controller

UR Application Builder
  • Build your robot application online with step by step guidance





  • Get insight on various options for your cobot solution





  • See a simulation of your application running





  • Download package includes design, program and interface tips



UR Service 360
  • Mitigate risk and take control of unexpected expenses due to unplanned service costs and reducing downtime and delays.
  • Maximize cobot ROI through remote and onsite performance and programming checks, environment assessments and access to UR’s certified engineers, automation experts and 24/7 customer support portal.
  • Keep production running with preventative services and rapid-response visits.
  • Recover rapidly in the event of the unexpected with access to hassle-free service, parts and replacements through Advanced Motion & Controls Ltd.
