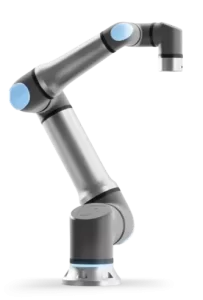

The UR30 can lift heavy payloads while maintaining a compact footprint in a collaborative setting.
With a 30 kg lifting capacity and a 1300 mm reach.
This robot can tend larger machines, palletize heavy products, and effectively support high torque screw driving.
1300 mm / 51.2 ins
30 kg / 66.13 lbs
Ø 245 mm
63.5 kg / 139.9 lbs</p
Building off the same architecture as the UR20, the UR30 offers extraordinary lift in a compact footprint with superior motion control ensuring the perfect placement of large payloads. With the ability to handle higher torque, the UR30 opens the door for precise screw driving and the 30 kg payload brings productivity to everything from machine tending with multiple grippers to palletizing heavy parts.
Avoid injury or accidents caused by lifting heavy items and ensure perfect pallet placement with consistent speed.
Use multiple grippers in your machine tending application. Remove pieces, clean parts, and place new stock all in a single pass maximizing productivity.
The UR30s high torque joints and force torque sensor allow for straight, consistent screw driving even in areas difficult for humans to reach and steady mode prevents protective stop while maintaining safety.
Future-proof your facility with a cobot which enables you to grow with your tasks.
When requiring to lift heavy objects over the maximum distance.
Do not limit yourself by the way your end-effector is mounted.

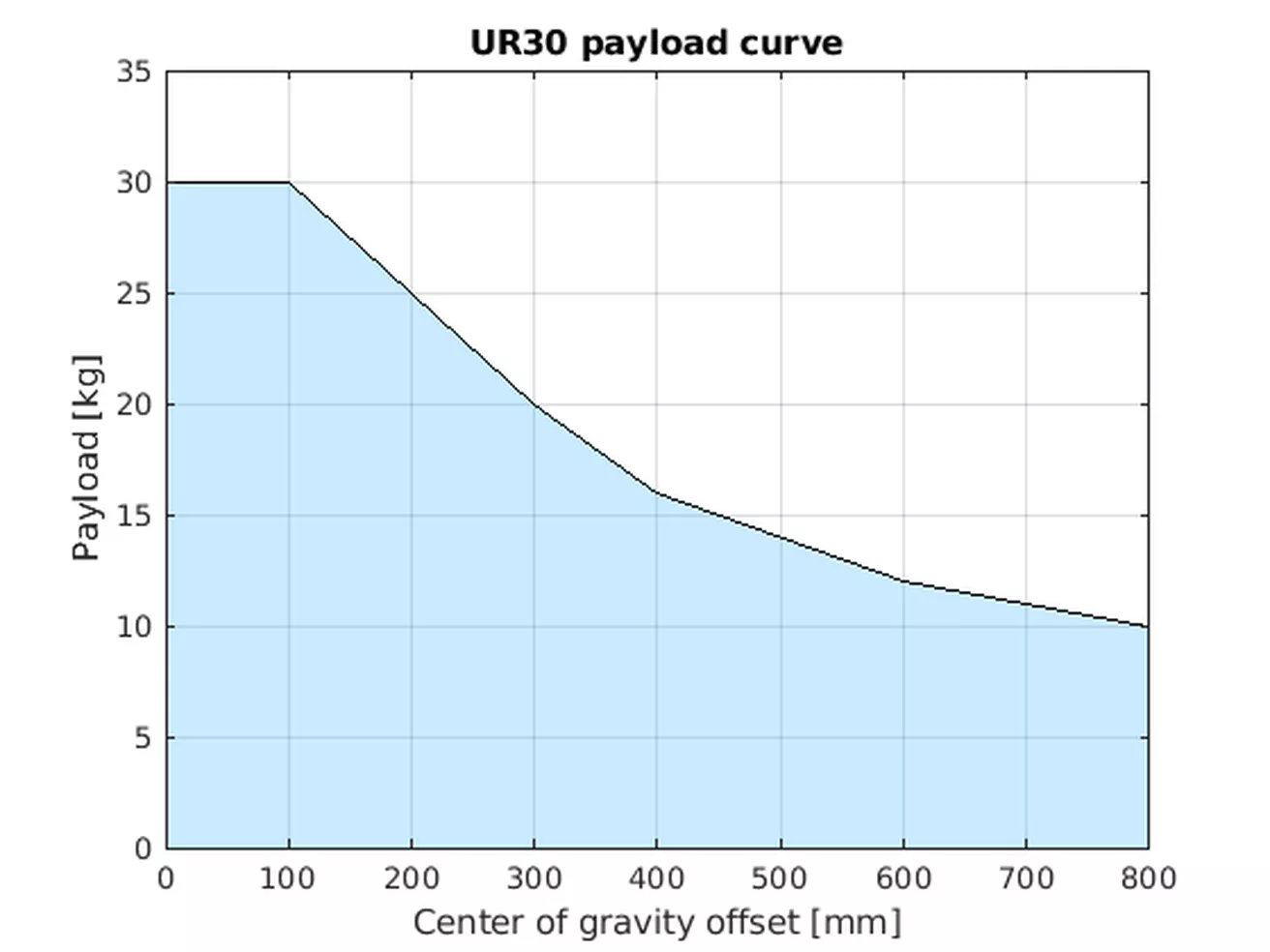

If the objects require a change of how they are being lifted, resulting a shift in the center of gravity.
The UR30 will support you in this change.
With increased payload, enhanced speed and reach capabilities.
The safety of the operator is always our number one priority.
With the goal of building a collaborative robot.
Our engineers devoted hours into the development of our safety functions.
The result of their effort was the creation of benchmarks for safety.
When working with collaborative, industrial robots today.
