Universal Robot UR3e
The UR3e collaborative robot is a smaller collaborative table-top robot, perfect for light assembly tasks and automated workbench scenarios. The compact table-top cobot weighs only 24.3 lbs (11 kg), but has a payload of 6.6 lbs (3 kg), ±360-degree rotation on all wrist joints, and infinite rotation on the end joint.
UR3e QUICK FACTS
REACH
500 mm / 19.7 ins
PAYLOAD
3 kg / 6.6 lbs
FOOTPRINT
Ø 128 mm
WEIGHT
11.2 kg / 24.7 lbs
GET TO KNOW OUR THE UR3e ROBOT
The UR3e has a compact form factor making it a good fit for tight workspaces. Its small footprint is great for bench-tops or built directly inside machinery, making it well suited for light assembly and screwdriving applications. UR3e is also offered as an OEM robot system and with a 3-Position Teach pendant. Are you looking for the CB3 model?

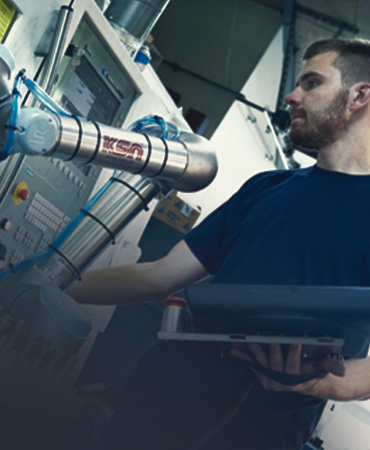

EASY PROGRAMMING
Patented technology lets operators with no programming experience quickly set up and operate our cobots with intuitive, 3D visualization. Simply move the robot arm to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.

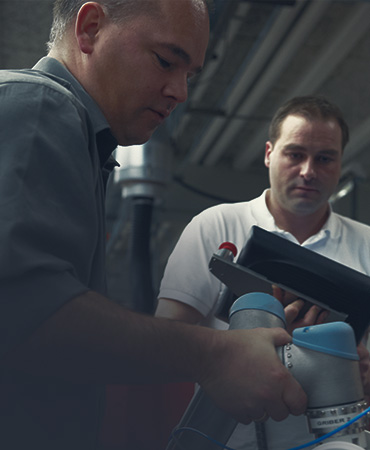

FAST SET-UP
Universal Robots has revolutionized cobot set-up, reducing typical robotic deployment measured in weeks to a matter of hours. The average set-up time reported by our customers is only half a day. The out-of-box experience for an untrained operator to unpack the cobot, mount it, and program the first simple task is typically less than an hour.

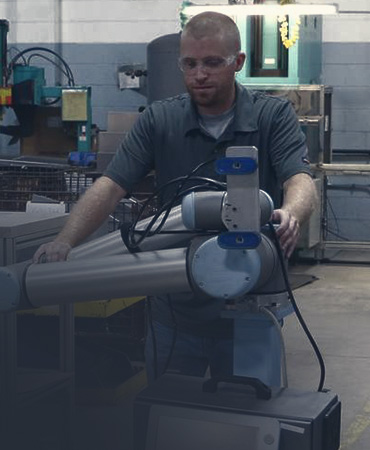

FLEXIBLE DEPLOYMENT
Don’t be limited by dedicated robotics. Universal Robots are lightweight, space-saving, and easy to re-deploy to multiple applications without changing your production layout. Moving the cobot to new processes is fast and easy, giving you the agility to automate almost any manual task, including those with small batches or fast change-overs. The cobot is able to re-use programs for recurrent tasks.

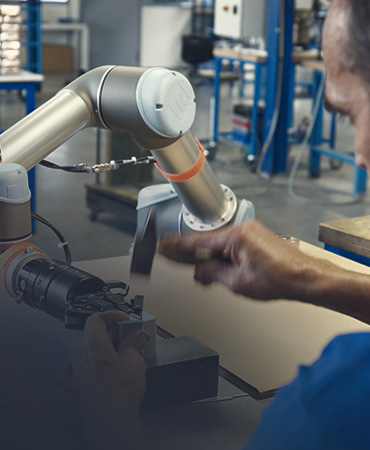

COLLABORATIVE AND SAFE
Now you can replace human operators in dirty, dangerous, and dull jobs to reduce repetitive strain and accidental injuries. Eighty percent of the thousands of UR robots worldwide operate with no safety guarding (after risk assessment), right beside human operators. The safety system of our robots is approved and certified by TÜV (The German Technical Inspection Association).
Customize the Perfect RoboticS
Solution

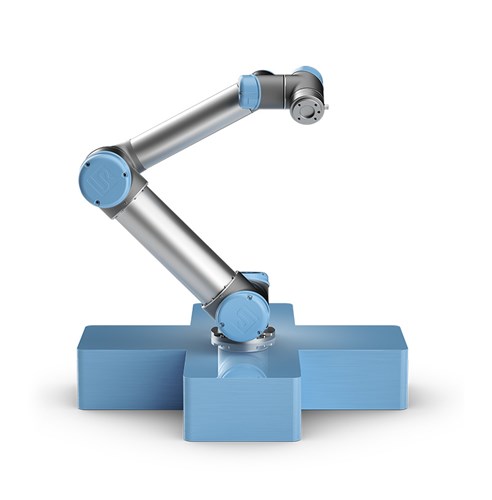

Universal Robots+ is a showroom with Universal Robots-certified end-effectors, software, and accessories from some of the world’s best developers – designed specifically to work flawlessly with our collaborative robots.
POPULAR END-EFFECTORS AND ACCESSORIES FOR THE UR3
COLLABORATIVE ROBOT

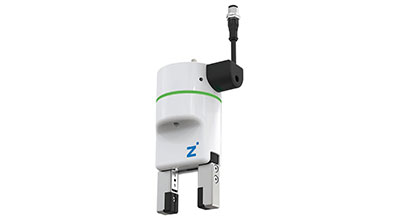

ZIMMER GROUP COLLABORATIVE GRIPPERS
The Zimmer Group collaborative grippers are developed for cooperative and collaborative applications. They can be directly assembled to the UR robot flange. The embedded URCaps software makes it even easier to operate the end-effectors.
SMC MHM MAGNETIC GRIPPER KIT
Plug & Play.Air gripper equipped with a high precision linear guide. Compact, lightweight product with high gripping force due to air operation.
